Interlocking Panel

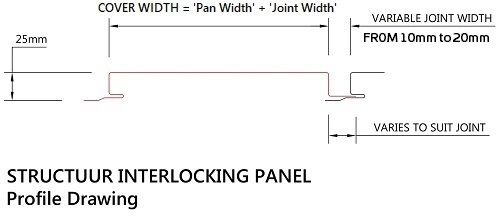

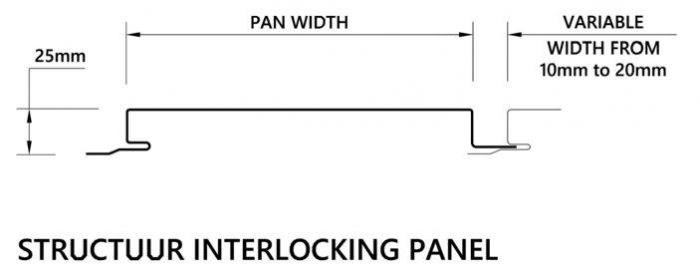

STRUCTUUR INTERLOCKING PANEL PROFILE DETAILS

A Variety of standardised pan widths are available for ultimate flexibility.

We also offer customised pan widths to suite a project specific requirement.

Structuur Interlocking Panel can also be produced with double male sides, double female sides and tapers. We can also fold sheets to eliminate the need for internal or external corner flashings.

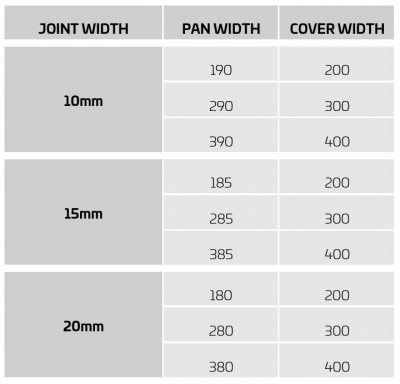

• Available with an expressed joint width of between 10mm-20mm
• Minimum panel length of 600mm

• Panel lengths are limited to a maximum of 6 meters due to expansion & contraction with a minimum panel length of 600mm
• Installation as a wall cladding only

SHEET SPAN CAPABILITY

Structuur Interlocking Panel can be installed in a variety of configurations, depending on the pan width, selected material or finish. Please refer to the table below for detailed span guidelines based on your specific project requirements.

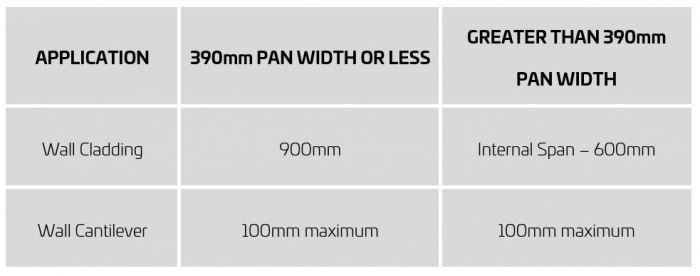

Spanning Capability for all materials.

ADVANTAGES

• Simple installation method with no joining or seaming tools required
• Clean appearance offered by all fixings being concealed
• Full customisation available by using any pan width giving Architects , Designers and Building owners complete freedom
• Horizontally, vertically or diagonal installation to offer unrivalled design options

MATERIAL AVAILABILITY

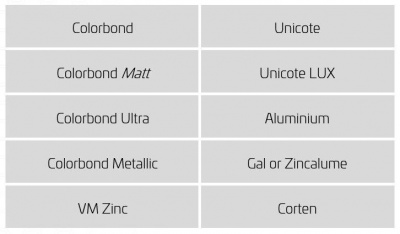

Structuur Interlocking Panel is available in the following finishes:

STRUCTUUR INTERLOCKING PANEL BASIC INSTALLATION SUMMARY

Structuur Interlocking Panel can be installed by individuals with the following skills:

• A basic knowledge of construction principles.
• The capability to use basic hand tools such as snips and basic roofing tools.
• Knowledge of waterproofing principles and the ability to install watertight flashings.

Structuur Interlocking Panels are installed by fastening screws through the tab side of each panel using fixings appropriate to the type of substrate.

To install each sheet:

Slide the male side of the panel into the interlocking groove of the previously installed panel ensuring the substrate is straight, ideally within 2mm over the full length of the panel. Maintain panel alignment throughout installation. Provide and install watertight flashings as necessary. Structuur can provide flashing details on request.

Vertical Interlocking Panel Installation:

Install a foot mould flashing at the base of the wall, ensuring it remains level throughout. Use a laser level for accuracy. Plumb the first panel fixing it to the substrate in accordance with Structuur’s recommended span tables. For best results insert packers into the selected express joint size at each fixing location while fixing subsequent panels to the substrate to maintain a consistent express joint. Continue installing panels, ensuring each one remains plumb throughout the installation.

Horizontal Interlocking Panel Installation:

When installing in a horizontal orientation, the installation should commence from the top of the wall with the interlocking groove facing downward. Consider setting the wall out to finish with a panel of the desired width at the bottom of the wall. Level the first panel fixing it to the substrate in accordance with Structuur’s recommended span tables. For best results insert packers into the selected express joint size at each fixing location while fixing subsequent panels to the substrate to maintain a consistent express joint. Continue installing panels, ensuring each one remains level throughout the installation.

Installation requirements may differ based on the material being used.

To discuss your specific requirements and specific installation details, please contact Structuur on 0435 378 782
